Aspiro®® Series Defendr Door System™ Glass Options

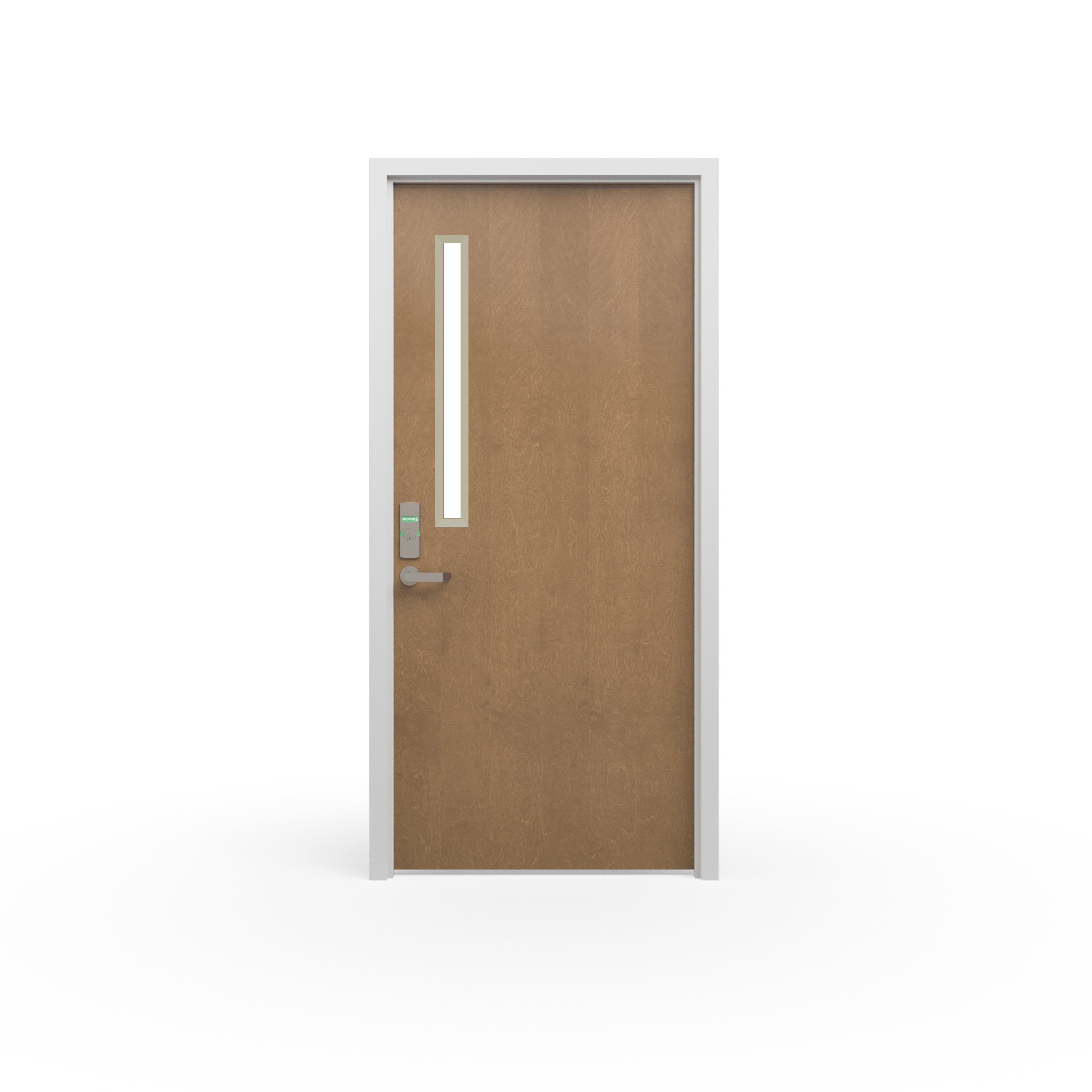

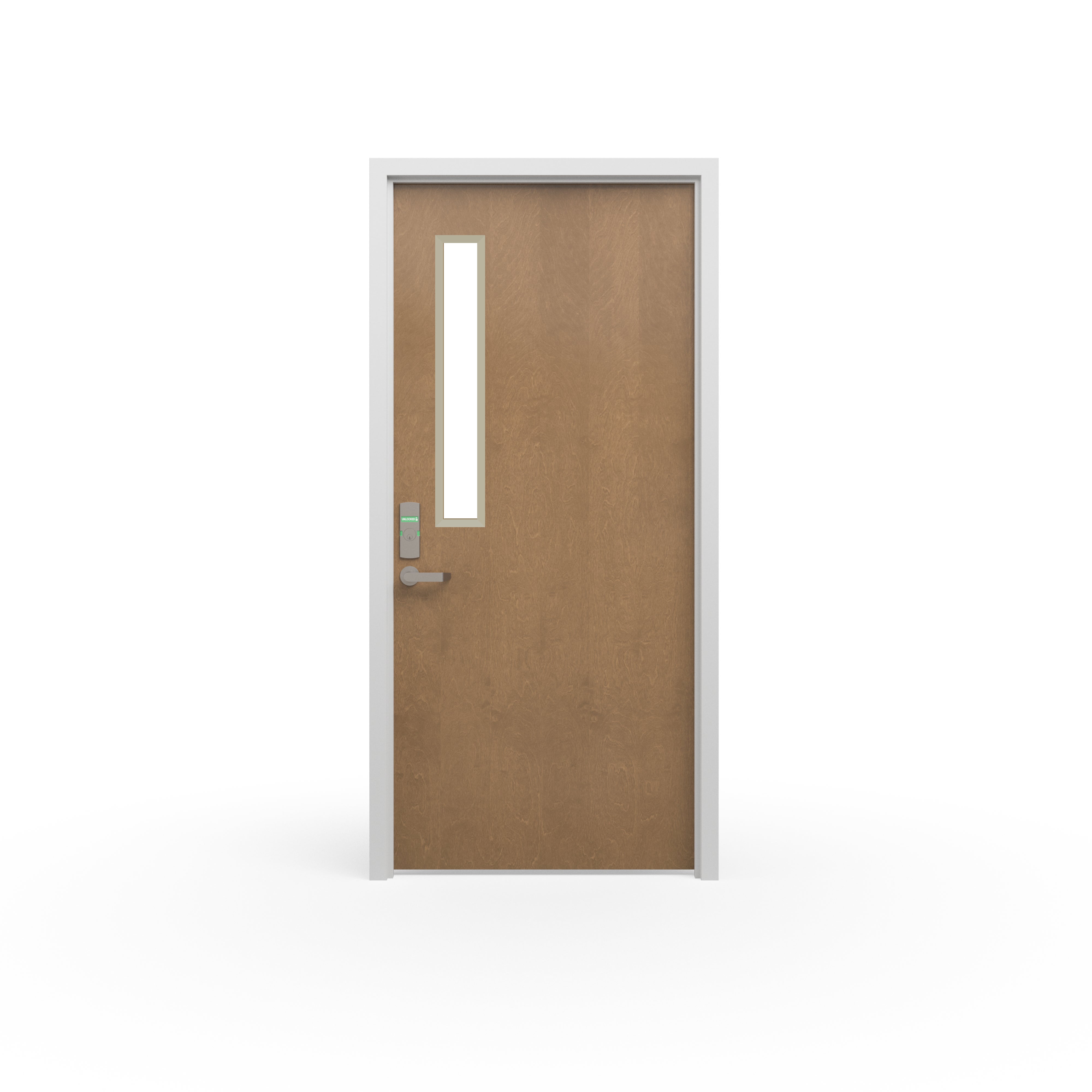

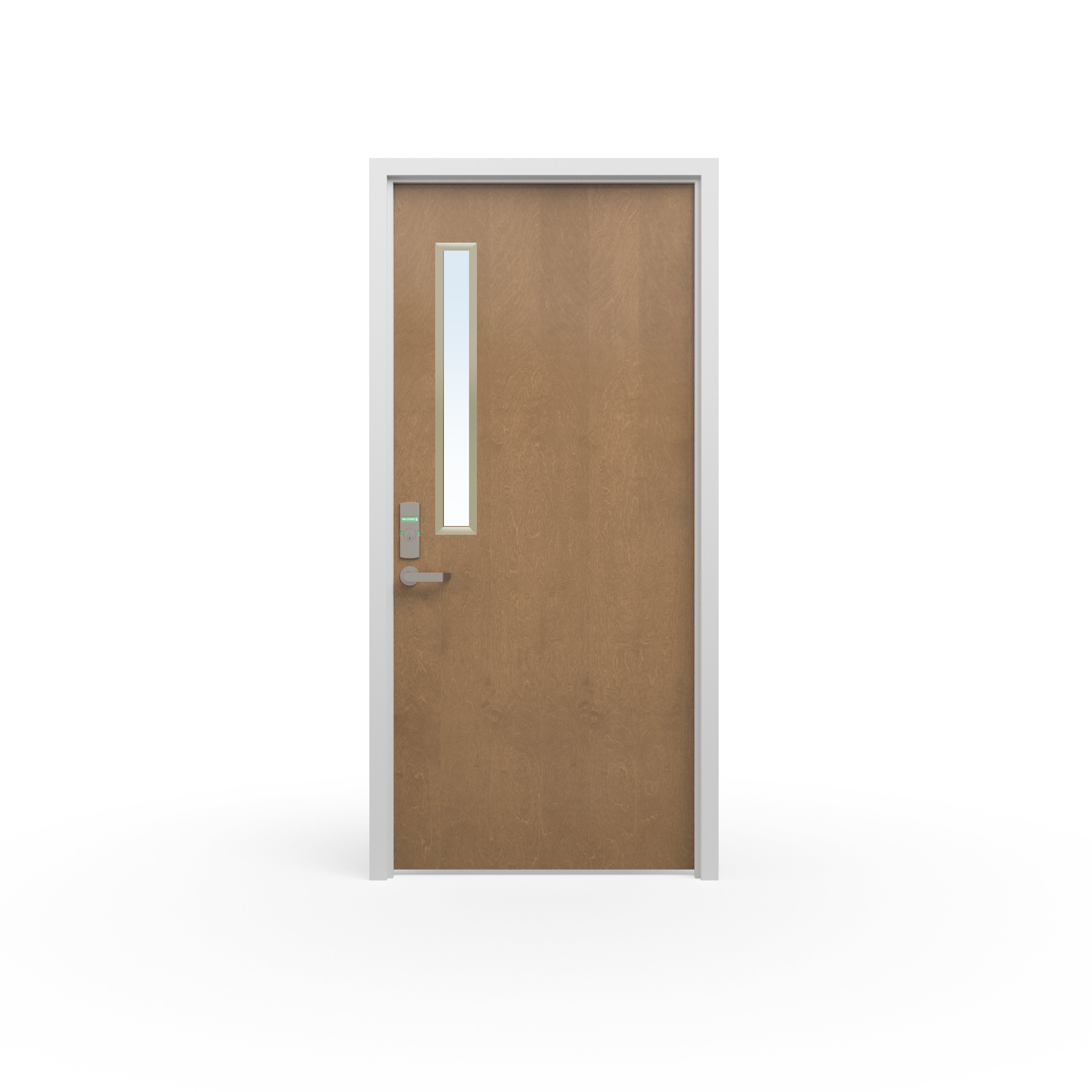

Vision panels are one of the simplest ways to improve both daily safety and emergency response.
They should be standard in doors where visibility is important—like classrooms, corridors, and offices—using security-rated glass.
They allow staff to see who’s on the other side before opening a door, reducing risk and improving situational awareness.
Key Considerations when Specifying Attack-Resistant Glass
When specifying attack-resistant glass for doors or vision panels, glass selection must align with the required performance tier, fire-rating (if applicable), and the tested door/frame assembly. Several factors ensure both safety and functionality:
Fire-Rating: Verify whether fire-rated glass is required for your application, especially in corridors or egress paths.
Testing & Certification: Choose glass that has been tested and certified to recognized attack-resistant standards.
Vision Frame Type: Decide between single- or dual-pane metal frames. Dual-pane frames can offer enhanced performance but may affect appearance.
Glass Options for Dual Pane: If selecting dual-pane, confirm which fire-rated or specialty glass options are compatible.
Aesthetics: Consider the visual impact—dual-pane systems can influence transparency, thickness, and overall design.
Factory Installation - To maintain compliance with published testing standards and certification listings, all security and fire-rated glazing must be factory installed as part of the tested door assembly. Field glazing or component substitution may void certification, impact labeling eligibility, and compromise tested performance.
Glass & Glazing Options for Aspiro® Series Defendr Door System™
Enhance safety, fire protection, and aesthetics with Forte’s attack-resistant security glazing. As one of the most vulnerable parts of an opening, glazing requires specialized protection—Forte’s curated range of non-rated and fire-rated solutions is engineered to resist forced entry, ballistic threats, and fire exposure, helping safeguard occupants while preserving visibility and seamless design integration. Explore the options below to determine the right solution for your project.
Aspiro® Series Defendr Door System™ Attack-Resistant Glass Options
| Glass | Fire-Rating | Thickness | Weight | Frame | Pane | Warranty* | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Attack Glass | Fire-Rated Glass | Attack Glass | Fire-Rated Glass | |||||||
| Non-Rated Glass Options | ||||||||||
| McGrory DefendED™ MGSEC-031 | Non-Rated | 7/16" | N/A | 4.4 Lbs./Sq Ft. | N/A | AMS 110 | Single | 5 Years Limited | ||
| Armoured One AOTSG516L w/ Applied Film | Non-Rated | 5/16" | N/A | 3.5 Lbs./Sq Ft. | N/A | AMS 110 | Single | 10 Years Limited | ||
| Armoured One AOTSG516L-T4 | Non-Rated | 5/16" | N/A | 3.7 Lbs./Sq Ft. | N/A | AMS 110 | Single | 10 Years Limited | ||
| School Guard Glass™ SGG-L7-SG4 | Non-Rated | 7/16" | N/A | 4.3 Lbs./Sq Ft. | N/A | AMS 110* | Single | 5 Years Limited | ||
| School Guard Glass™ SGG-L7-SG5 | Non-Rated | 7/16" | N/A | 4.56 Lbs./Sq Ft. | N/A | AMS 110 | Single | 5 Years Limited | ||
| Fire-Rated Glass Options with Single Pane AMS 110 MVF | ||||||||||
| McGrory FireDefend™ MGSEC-033 | 45-Minute | 7/16" | N/A | 5.1 Lbs./Sq Ft. | N/A | AMS 110 | Single | 5 Years Limited | ||
| Fire-Rated Glass Options with Dual Pane AMS 110B-D2 MVF | ||||||||||
| School Guard Glass™ SGG-L7-SG4 + Pyroswiss20 | 20-Minute | 7/16" | 1/4" | 4.3 Lbs./Sq Ft. | 3.25 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 5 Years Limited | ||
| School Guard Glass™ SGG-L7-SG5 + Pyroswiss20 | 20-Minute | 7/16" | 1/4" | 4.56 Lbs./Sq Ft. | 3.25 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 5 Years Limited | ||
| Armoured One AOTSG516L w/ Applied Film + Pyroswiss20 | 20-Minute | 5/16" | 1/4" | 3.5 Lbs./Sq Ft. | 3.25 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 10 Years Limited | ||
| Armoured One AOTS-G516L-T4 + Pyroswiss20 | 20-Minute | 5/16" | 1/4" | 3.5 Lbs./Sq Ft. | 3.25 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 10 Years Limited | ||
| Armoured One AOTSG516L w/ Applied Film + Pyran Platinum F or Firelite NT | 45-Minute | 5/16" | 3/16" | 3.5 Lbs./Sq Ft. | 2.56 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 10 Years Limited | ||
| Armoured One AOTS-G5161L w/ Applied Film + Pyran Platinum F or Firelite NT Plus | 45-Minute | 5/16" | 5/16" | 3.5 Lbs./Sq Ft. | 4.1 - 4.3 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 10 Years Limited | ||
| Armoured One AOTS-G516L-T4 + Pyran Platinum F or Firelite NT | 45-Minute | 5/16" | 3/16" | 3.5 Lbs./Sq Ft. | 2.56 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 10 Years Limited | ||
| Armoured One AOTS-G5161L-T4 + Pyran Platinum F or Firelite NT Plus | 45-Minute | 5/16" | 5/16" | 3.5 Lbs./Sq Ft. | 4.1 - 4.3 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 10 Years Limited | ||
| School Guard Glass™ SGG-L7-SG4 + Pyran Platinum F / Firelite NT | 45-Minute | 7/16" | 3/16" | 4.3 Lbs./Sq Ft. | 2.56 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 5 Years Limited | ||
| School Guard Glass™ SGG-L7-SG4 + Pyran Platinum F / Firelite NT Plus | 45-Minute | 7/16" | 5/16" | 4.3 Lbs./Sq Ft. | 4.1 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 5 Years Limited | ||
| School Guard Glass™ SGG-L7-SG5 + Pyran Platinum F / Firelite NT | 45-Minute | 7/16" | 3/16" | 4.56 Lbs./Sq Ft. | 2.56 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 5 Years Limited | ||
| School Guard Glass™ SGG-L7-SG5 + Firelite NT Plus | 45-Minute | 7/16" | 5/16" | 4.56 Lbs./Sq Ft. | 4.1 Lbs./Sq Ft. | AMS 110B-D2 | Dual | 5 Years Limited | ||
GlassPlacement

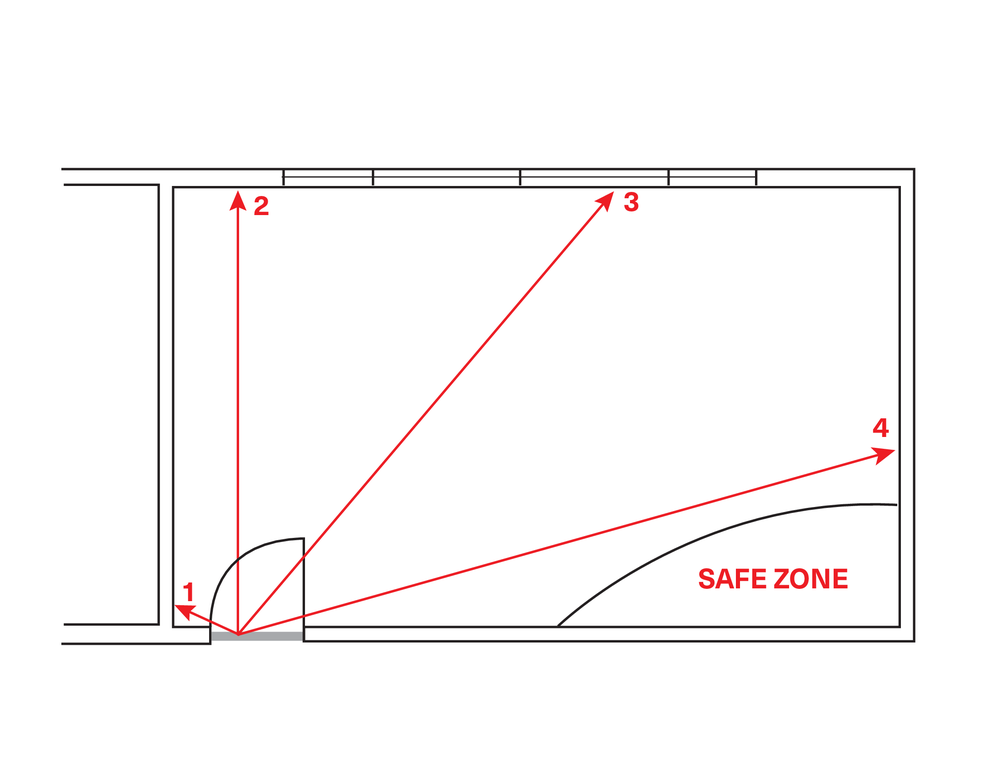

Placement is just as important as size—panels should be positioned to provide clear visibility from the corridor while still maintaining a defined safe zone inside the room. Larger panels improve visibility, while smaller panels increase the safe zone, so it’s about finding the right balance. When properly designed, vision panels enhance both security and transparency in a space.
Metal Vision Frames
Forte’s attack-resistant glass options are paired with heavy-duty metal vision frames designed to support both security performance and long-term durability. Engineered to integrate seamlessly with high-performance glazing systems, these frames help maintain the integrity of the opening—providing secure glass retention, clean aesthetics, and compatibility with both non-rated and fire-rated assemblies.

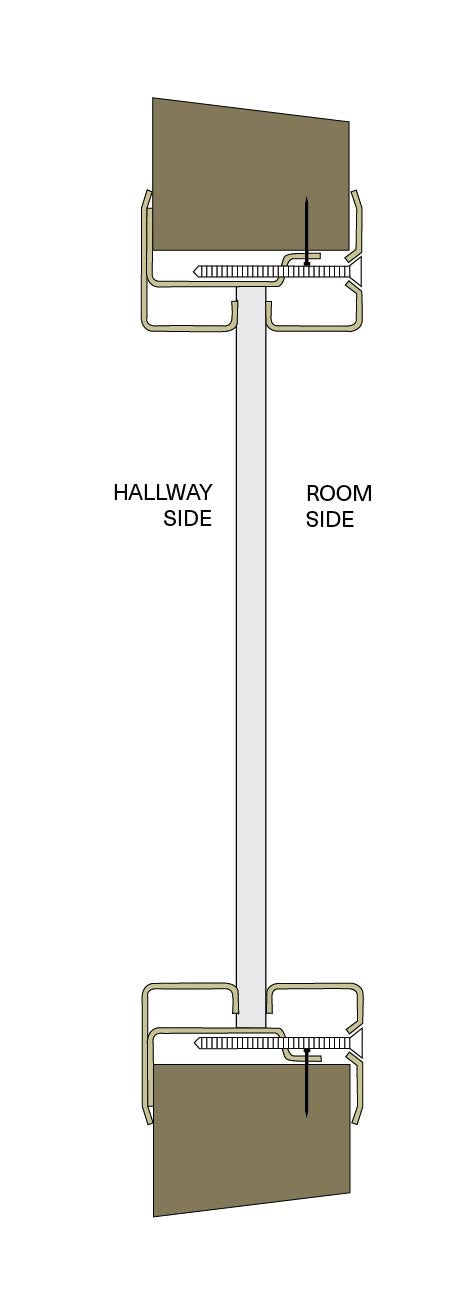

110 AMS Metal Vision Frame
Single-Pane | Non-Rated and Tested Fire-Rated Applications
Product Overview
The 110 AMS Metal Vision Frame is a robust, single-pane metal vision frame designed for use with non-rated and select security glazing. It provides a clean, low-profile appearance while securely retaining glass in standard and attack-resistant configurations. Currently, Forte offers one 20- or 45-minute fire-rated security glazing solution from McGrory Glass that integrates fire protection and attack-resistance into a single lite. This eliminates the need for a dual-pane build-up and provides several advantages:
Lower overall cost
Faster, standard lead time
Cleaner aesthetics with no visible air space between lites
Key Features
Single-pane construction for simplified glazing
Compatible with non-rated glass and McGrory DefendEd™ 20-minute and 45-minute fire-rated applications
Durable metal design for long-term performance
Clean, streamlined aesthetic
Where to Specify:
School entrances and vestibules
Classrooms, special needs rooms
Administrative offices and secure areas
Gymnasiums, media rooms, libraries

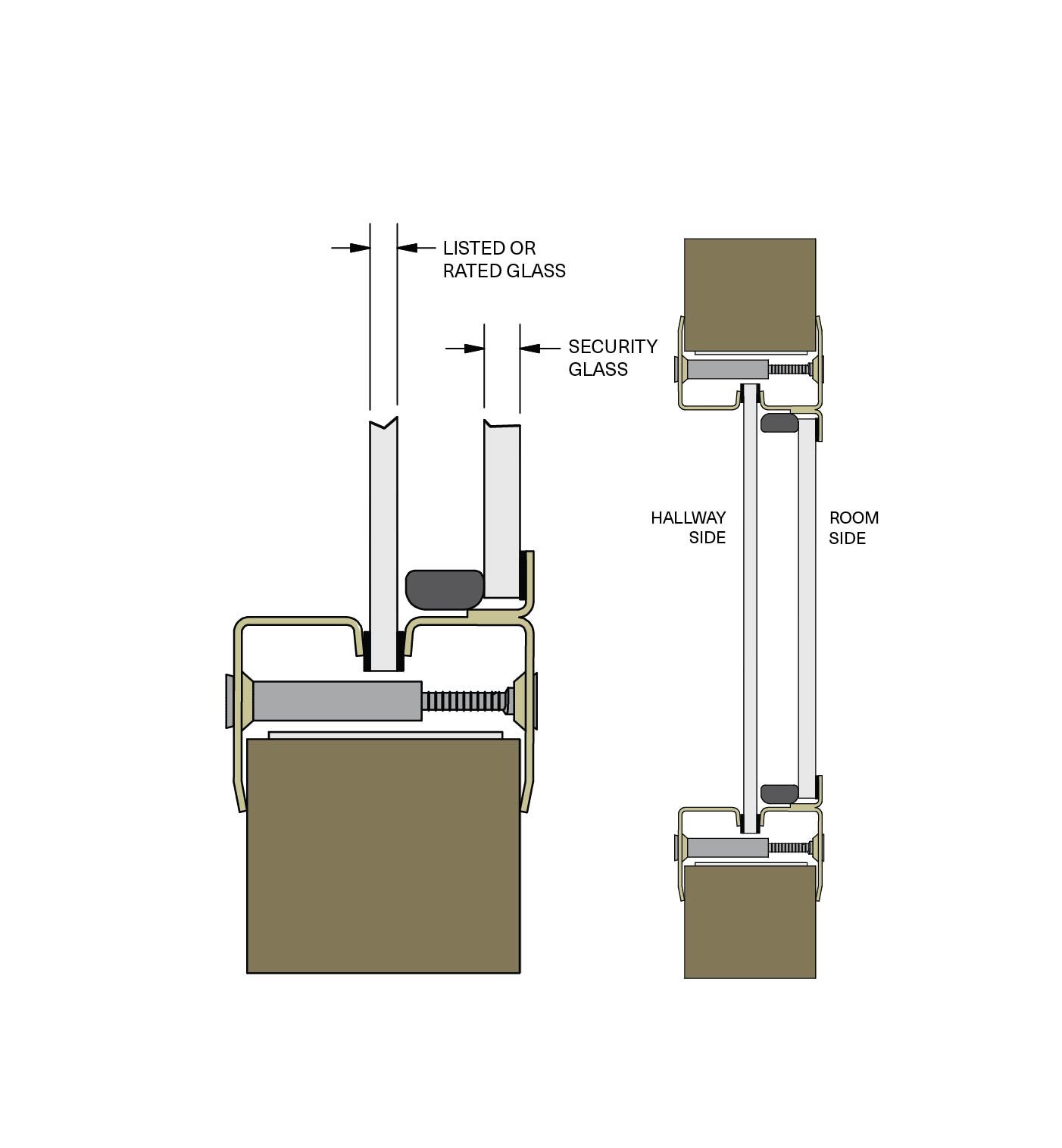

110B-D2 AMS Metal Vision Frame
Dual-Pane | Fire-Rated & High-Performance Applications
Product Overview
When fire resistance is required, depending on the glass selected, the fire-rated glass and attack-resistant glass may be combined in a dual-pane configuration to maintain both security and life-safety performance. Configurations vary based on availability of fire-rated attack-resistant glass. Refer to Glass, Glazing & Vision Frames Options in table 4.2 for list of available glass by security tier.
The 110B-D2 AMS Metal Vision Frame is a dual-pane, fire-rated metal vision frame engineered to accommodate thicker, multi-layer glazing assemblies. Designed for higher performance applications, it supports both fire-rated and advanced security glass while maintaining the integrity of rated door systems.
Key Features • Dual-pane construction for thicker, multi-layer glazing • Compatible with fire-rated and attack-resistant glass • Designed to meet fire door assembly requirements • Enhanced durability for high-performance applications
Where to Specify:
School entrances and vestibules
Classrooms, special needs rooms
Administrative offices and secure areas
Gymnasiums, media rooms, libraries
